NH-2700 CE

The newest ATM from Nautilus-Hyosung is the NH-2700CE.

This machine is designed to provide more reliability than all other ATM machines that came before it. The NH-2700 is designed to be a workhorse in retail market locations with the highest amount of uptime, and minimum maintenance needs. You won't have to worry about replacing the parts or sudden breakdowns because the NH-2700CE is designed to run for a very long time, problem-free.

With quality comes responsibility. The NH-2700CE is equipped with various energy saving features like the low energy LCD screen. This ATM, is made with long lasting parts made with minimum implications to the environment.

The NH-2700CE is designed with an open architecture platform allowing for easy future upgrades and module modifications.
Modular design is one of ways in which Nautilus is trying to save customers' cost and provide maximum convenience. Modular parts can simply be unplugged and replaced. In most cases, an ATM owner should be able to repair their own NH-2700 machine by removing a couple of screws, plugging in the new part, replacing the screws, and it's fixed! No need for an ATM tech in most cases.

Main features for this ATM machine include the large 10.2" color LCD screen. Other features let you choose between a 1000 note drawer type dispenser or a 1000 note removable cassette type dispenser. Or, if you need it, an optional 2000 note dispenser is available.

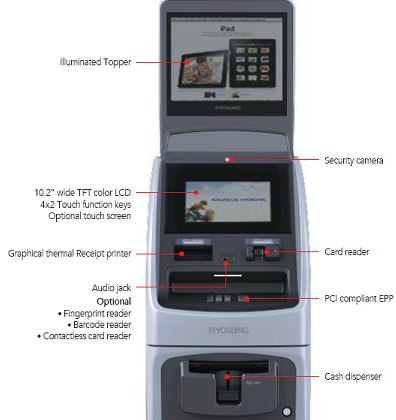

Summary of Features:

System Platform
Microsoft Window CE platform

Communication
TCP/IP, Wireless, Dial-up

Display
10.2” wide TFT color LCD

Input Type
4x2 Touch function keys
Optional touch screen
PCI compliant EPP
T-DES, DES, RSA
Optional RKT

Security
UL 291 Business hours safe
UL Level 1 safe
Mechanical combination lock
Electronic lock
KABA Mas cencon lock
Security camera

Cash dispenser
1,000 notes drawer type
1,000 notes cassette
2,000 notes cassette
(Up to 3)

Printers
Graphical thermal receipt printer

Additional Features
Lead-through indicator
Audio jack
Speaker
Illuminated topper
Option
Contectless card reader
Barcode reader
Fingerprint reader

Power Supply
AC 110~240V, 50~60 Hz

Environmental Conditions
Temperature 0°C~40°C ( 32°F~104°F )
Humidity 20%~85%

Dimensions
Height : 1250mm (49.2”)
Width : 400mm (15.7”)
Depth : 500mm (19.7”)
Weight : 120kg ( 264.5lbs)
